A peek inside the DHCP server

Here is what the DHCP server looks like for a network with VLANs on every floor and a VOIP system.



From the pic you can see all the scopes created. What is happening here as I mentioned before is that each floor is it own VLAN and each VLAN gets their IP from the scope that it's associated with. Remember that IP helper address I told you about (10.100.1.22) well this is the server.

You will also notice more than half my scopes are inactive. This is b/c the 12th floor isn't online as of yet. Also the other scopes are for the IP phones for each floor too. Those aren't rolled out yet either. Yes the phones need a scope too. They will have IP's as well.

For the ones that don't know the IP phone plugs into a standard RJ45 jack (the network jack)and your PC plugs into the phone. The IP phone is also a switch.

Bottom of a Cisco IP phone
10/100 SW goes into your network jack
10/100 PC connects to your PC
The AC power port you do not need if you have power over ethernet (PoE). Your access switches will power your IP phones.

Fiber cables and IPT stuff

I'm using three types of connections in my network. SC/SC, LC/SC, SC/SC.

SC/SC

The SC/SC cables go from the fiber panel to the core switch. They connect to one of the ports on the gig module on the 4506. This would be your backbone cable in the data center (depending on setup).

LC/SC

The LC/SC cable is from the fiber patch panel to an access switch. Or from a core switch to an access switch or from an old access witch to a newer model 3500xl to 3560 for example.

LC/LC

The LC/LC cables connect two access switch's together via the gig ports (depending on setup).


Here is my fiber panel in my data center. These go up to all my floors.

Each floor as six pair or 12 strands. Whoever installed this before my time did an excellent job with leaving room for growth. If we have to pull new fiber it would have cost us tens-of-thousands of dollars.


A fiber panel on my 15th floor. We are only using two pair. (one is unplugged)


(someone forgot to dust)

PBX and Cisco

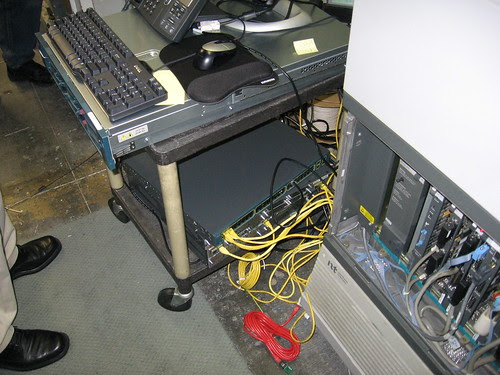

Cisco on the cart next to PBX

Call manager on top
3560 switch below
2811 gateway router
2851 gateway router


The red cable represents the T1 link. This is the line that will connect the old PBX to the new Cisco system.


This rack will house the CM the Unity connect server the gateway along with a few UPS'. We will also get another CM in a few months when we get more phones.

This weeks agenda

-Call manager install. I'll blog that for sure.
-VLANs configured for QoS (may or may not happen this week)
-Nortel option 61 T1 card being installed in our PBX (this is to connect to the Cisco system since we are doing the hybrid approach). It's a T1 between both systems to be exact. Also the card for the PBX will require downtime. Damn it's a really old PBX system too...
-My gig E modules need to be installed but I was told this may require downtime. So a 7am installation is deffinitely on the agenda.
-New floor data cabling and some power install. Two separate vendors I have to coordinate with for this too. They are union guys too so they tend to drag jobs out.
-Very busy week.

My current VLAN setup

With our dual core setup we are fully redundant. All access layer switches (the ones on the floors and usually in pairs) have a connection to each core switch. The way this works physically is by connecting one fiber cable to one gig port all the way down to one core switch and one port on the second access switch to the other core in our data center. Then connecting one of the gig ports on the access switch to one port on the other access switch. The two cores are also connected to each other. Picture all four switches in a circle holding hands.



In the core we have our VLANs. As I explained in a past post each floor is a VLAN. The only way to make this physical redundancy work is to set it up virtually in the core. We have two core switches A&B. One is the root and the other is the standby. If the root core fails for whatever reason the standby is there. The setup on the core for redundant VLANs looks like this.

switch A

interface Vlan30
description CLIENT_FLOOR_30 VLAN
ip address 10.100.30.2 255.255.255.0
ip helper-address 10.100.1.22
ip helper-address 10.100.1.78
no ip redirects
no ip unreachables
no ip proxy-arp
standby 30 ip 10.100.30.1
standby 30 priority 105
standby 30 preempt



switch B

interface Vlan30
description CLIENT_FLOOR_30 VLAN
ip address 10.100.30.3 255.255.255.0
ip helper-address 10.100.1.22
ip helper-address 10.100.1.78
no ip redirects
no ip unreachables
no ip proxy-arp
standby 30 ip 10.100.30.1

This will only work if you have VTP (VLAN trunking protocol) setup obviously if you understand this far.

What is happening here is that switch A is the root and switch B is the standby. This is defined by the priority of 105.

Anywhere you see 30 represents the floor, so this VLAN would belong to the 30th floor.

The gateway of the clients on this VLAN is 10.100.30.1. Now 10.100.30.1 is on both switches and it is the HSRP (Hot Standby Router Protocol) address. So the A has a real address of 10.100.30.2 and B has a real address of 10.100.30.3 the virtual or HSRP is 10.100.30.1 and is linked to both switches by the (standby 30 10.100.30.1) command.

I'm just going over the main entries so stuff like no ip (redirect, unreachables, proxy-arp) you can google.

For VLANs the ip helper-address is important b/c broadcast do not cross VLANs (why would anyone want them to?) If you have a DHCP server that is in a SERVER VLAN just setting up the client VLANs and leaving with result in an entire network of workstation trying to find the DHCP server and not able to connect to anything. There are two simple ways to resolve this.
1. setup a DHCP server on every VLAN. This would be the dumbest and most inefficient thing to do.
2. add an ip helper-address statement (ip helper-address 10.100.1.22)to allow the client VLAN to find the server in the SERVER VLAN. 10.100.1.22 would be my DHCP server and this line would be in all my VLAN configs. Not only that but a scope for every client VLAN will have to be created in your DHCP server. So the scope created for the network on the 30th floor would be set to give out IP as such;
10.100.30.100-254 /24.

You can also see that I have another ip helper-address there. That is for another server that uses broadcasts to communicate with the clients.

For the configs above if I had a network that spanned across a 30 floor building I would have a VLAN for every floor that would look the same way. I also have a management VLAN, Server VLAN, Voice VLAN, Video VLAN, Printer VLAN, Wireless VLAN etc...

You can see how complicated this can get and this is only VLANs we are dealing with here.

Cisco phones are in

As I am typing this up I don't even know the exact model number of them LOL. I'll update that when I get the pics of them up.
(update 7941)


My desk area is in shambles. 100 phones in 20 boxes piled up by my desk.


Along with 2 GigE expansion blades for both 4506's a few trunk adapters (I think that's what the box said)


2 routers and a server, voice gateway and call manager (unity server not here yet). I didn't bother check for details been too busy with other things.


Here are the pics.

What's next?

While I was out we got the go ahead to acquire another floor in the building. This floor will accommodate a least 65 users. We will have to core fiber from one of our other floors. We can't drop a patch cable out the window like we did a few years ago this time (true story).

This new floor will get all new cabling and a dual fiber run to our 4506's, PoE switches and Cisco IP phones. We are finally moving over into the IPT boat. It will be a Cisco hybrid and work with our existing Nortel PBX. We will be using a Cisco CallManager 4.0-PBX Interoperability. New toys and new headaches.

I've been doing a lot of Cisco stuff lately. Very fun stuff.

I am back from my month off.

And you thought 2 weeks or even a 3 day weekend went by fast. My month flew like the wind. Some would have tried to squeeze in a mini vacation and travel not me. I was home enjoying fatherhood.
